contents
(Machineries)
-
Forged Steel Check Valves
CHECK VALVES – BOLTED/WELDED BONNET – REDUCED/FULL PORT
-
Forged Steel Globe Valves
GLOBE VALVES – BOLTED/WELDED BONNET – REDUCED/FULL PORT
-
Forged Steel Gate Valves
GATE VALVES – BOLTED/WELDED BONNET – REDUCED/FULL PORT
-
Steam Control Valve
High temperature, High pressure valve
-
INSTRUMENT VALVE
Suitable for high temperature and high pressure environment in power plant
- Produced and supplied to suit power plant environment
-
High temperature high pressure valve
Gate, palleral slide gate, globe, and tilting type disc check are being produced by type and applied to major nuclear power plants, combined cycle power plants and thermoelectric power plants in Korea
-
Parallel Slide Gate Valve
▶ Application
- Oil Production
- Power Plant
- Oil Refinery
- Plant Engineering
- Gas Industry
- Steel Mills
- Ship Building
- District Heating
- Chemical Plant
▶ Operator
- Manual Operator
- Pneumatic Actuator
- Electric Actuator
- Hydraulic
-
Forged Valve
▶ Application
- Oil Production
- Power Plant
- Oil Refinery
- Plant Engineering
- Gas Industry
- Steel Mills
- Ship Building
- District Heating
- Chemical Plant
▶ Operator
- Manual Operator
- Pneumatic Actuator
- Electric Actuator
- Hydraulic
-
Turbine governor actuator
Steam valve actuator adjusting turbine speed. It operates hydraulic actuator by electric signal to adjust the delivery rate of valve such as 500MW, 1000MW etc.
-
EHPC actuator (for adjusting coolant feed water)
The Servo-valve installed in control valve controls the flow path supplying to actuator and pump supplying water using the delivery rate of control valve and the signal of Control Valve LVDT Feedback is required in turbine main control facilities.
-
600#,GL,PS,BW CF8M 10″
It is used for NSSS system and it applies STAINLESS material, being used in radioactive environment condition.
-
Motor driven ball valve (MOV)
1. This opens a path of nuclear instrumentation detector when measuring major variables (power distribution, △I and so on) of incore, but remains closed in the normal operation.
2. This keeps the pressure boundary of chilled water system of nuclear reactor that prevent the leakage of chilled water when a guide thimble is destroyed.
-
Nuclear Manual Bolted Bonnet Gate Valves
Forged Steel Bolted Bonnet Gate Valves
-
Hydroelectric governor actuator(DISTRIBUTE VALVE)
Governor system that is integrated with hydraulic supply system HPU including pressure accumulator, distribute valve and actuator etc. (Vane motor), being applied RUNNER VANE, GUIDE VANE as a use of adjusting the speed of hydraulic turbine in the hydroelectric power.
-
Nuclear Manual Elastomeric Sealed Valves
-
-
Horizontal, Single Stage, Volute Casing Centrifugal Pumps
For clean fluids (water, sea water, chemicals. oil, lyes, condensate, etc.)
For general purpose pumping in a wide range of services : general industries, chemical industries, domestic water supply, buildings, waterworks, water treatment, irrigation, marine use(fresh water, cooling water, sanitary, G.S, Ballast...) drainage, air conditioning, spray, swimming pool, dust removing & sprinkler, cooling or heating circulation etc.
-
API 610 Process Pumps
Pump for oil refinery, maximum efficiency and reliability, strong structure and complete standardization of wide scope
-
WELDED PIPE
Stainless Steel : piping following SA358 specification
Carbon Steel : piping following SA672 specification
-
LATERAL
Stainless Steel : Y type of piping following SA403 specification
Carbon Steel : Y type of piping following SA234 specification
-
RUPTURE DISC
The RUPTURE DISC is a part designed to be weak on purpose in the pressure system. It is a non-mechanical decrease device of over-pressure.
The system must manage the over-pressure when the pressure inside of the pressure system is over. This is a safety device that protects the system safely from the over-pressure by rupturing when the pressure is over.
-
NGBTI(Special insulation system for the inside of containment)
This is an insulation for thermal insulation of equipment and piping of the inside of containment. It is an insulation system fit to strict rules of Reg. 1.36, 1.82 and others.
-
ASME Ⅷ Heat Exchanger (Shell & Tube Type) / SHC / SHFC SERIES OILCOOLER
High-powered SHC, SHFC series(HEAT EXCHANGER & OIL COOLER) which was efficiently designed and manufactured by analysis, research and development of technology know-how accumulated for the past 30 years has a high performance and high efficiency.
-
Plate type heat exchanger
1. 3~5 times of higher efficiency compared to tubular heat exchanger
2. Compact design secures the minimum installation space.
3. Easy disassembly and assembly enable maintenance to be easy.
4. The number of plates can be increased if the heat capacity is increased during operation.
-
Over Head crane
-It features a bottom flange trolley for I-Beam with direction of lifting and traversing
-It is available to transport the load with curved rail easily
-Powerful abilities of loading and unloading with low noise and low vibration
-
Gantry type crane
-It features a bottom flange trolley for I-Beam with direction of lifting and traversing
-It is available to transport the load with curved rail easily
-Powerful abilities of loading and unloading with low noise and low vibration
-
Gantry Crane
This crane is a type which is combined with Overhead Crane and Leg structure, being the most widely used in open storage yard or intake of nuclear power plant, hydroelectric power, water pump, thermal power, general industrial companies etc..
-
Overhead Crane
This is a roof-typed crane being the most widely used in nuclear power plant, hydroelectric power, water pump, thermal power, general industrial companies, etc.
-
Polar Crane
As an auxiliary crane which is installed in containment building(dome) of nuclear power plant, this crane is a core facilities item being used for nuclear fuel charging.
-
CONDENSATE POT
Press transmission container for steam lines
-
MOISTURE SEPARATOR
It is a part collecting water particles of clean air system.
It has 99% of removal efficiency from hygroscopic moisture.
-
Surface Condenser
A surface is a shell & Tube type heat exchanger condensing steam(vapor) being discharged from steam turbine of power plant generally. It forms vacuum in the condenser by condensing the steam being discharged from turbine and improves turbine efficiency by increasing the thermal head.
-
Butterfly Blade Damper
Designed to meet the Construction criteria of IEEE standards.
Available in Rectangular or Round shapes.
-
Back Draft Damper
This damper is normally installed in wall or in the terminal parts of duct-line. The function is the same as a check Damper. Designed to meet the construction Criteria of IEEE standards. Counter is balanced applied. This damper is Rectangular.
-
Thermoelectric Air Conditioner CNL-200TEC / CNL-800TEC
Inflow of heat(high temperature), humidity and foreign material become the cause of failure & malfunction in the most electric/electronic devices. Particularly, digital device exposed to high temperature environment significantly reduces its lifespan due to aging of the parts and the facilities caused by this stops frequently. Thermoelectric cooling system is a product that can secure reliability of facilities by blocking and preventing the cause of main failure and malfunction of digital devices related to various control, electric, telecommunication positioned at the high temperature area of turbine, boiler in the vicinity of domestic and foreign power plants.
-
Air Filtration Unit (AFU)
Removes radioactive air and dust particles from air through Carbon Absorber during normal and emergency conditions
-
Reactor Containment Fan Cooler (RCFC)
To cool the atmosphere of reactor containment building and maintain proper ambient design condition during normal and accident conditions
-
Centrifugal Water Chiller
To maintain the desired temperature for all service areas according to the designed specifications, provides chilled water to Air Handling Unit and equipment
-
Air Cleaning Unit (ACU)
Removes radio activated air and dust particles from air through Carbon Absorber during normal and emergency conditions.
-
Air Handling unit (AHU)
Provides filtered and conditioned air to maintain desired air quality according to the designed specifications using filters, cooling / heating coils and fans
-
FIRE DAMPER
A Device installed in the vicinity of fire compartment penetrations in duct to block flame, smoke in the event of a fire.
-
ACU
A Device that ventilates air or purifies the ambient air by filtering radioactive gases & harmful air etc. using filter
-
AHU
A Device that intakes air and supplies it after cooling, heating, dehumidifying, humidifying and filtering the air
-
Snubber
A device not only that non only sustains the dynamic load, but also absorbs the thermal movements.
-
Constant Hanger and Support
A device not only that not only sustains the static load, but also absorbs the thermal movements.
-
SWAY STRUT HYDRAULIC SNUBBER
SWAY STRUT : This is a device that restrains restrains movement in a specific direction but allows movement in other directions it is designed to accommodate angular piping movements thanks to its integrated spherical bearing.
-
VARIABLE SPRING HANGER CONSTANT SPRING HANGER
VARIABLE SPRING HANGER : it features a design that compresses a spring inside a cylinder and is called as a variable spring hanger because the spring's reaction force changes according to the movement of pipe position the pipe moves to upward or downward due to thermal expension. It is used at a place having small amount of thermal displacement and has advantages of simple structure and low price. CONSTANT SPRING HANGER : This is same as the variable spring hanger, but has a feature that the reaction size of spring is constant even though the pipe moves up and down via a specially designed mechanism.. Explaining briefly, it is called as a constant spring hanger because when the same weighted materials are place on both sides of a scale, the balance is maintained. The constant spring hanger is used at main lines where there is minimal stress change.
-
Dissolved Air Flotation System (DAF)
Seawater desalination plant, sewage and wastewater treatment process, foot processing
-
Desalination System & Plants (SWRO Process)
A seawater desalination system featuring a skid mounted reverse osmosis design
-
Hot Cell
A Hot cell is a shielded enclosure workroom facility used for safely producing, distributing and packing radioactive materials. It is widely used in nuclear research institutes and research centers and tertiary hospitals using nuclear power.
-
Manipulator (Master-Slave Manipulator)
A Master-slave Manipulator remotely handles radioactive materials or radioactive isotope (RI) while preventing radiaition exposure. It is widely used in nuclear power research institutes, researches using nuclear power and cancer treatment clinics.
-
Ultrasonic Decontamination Equipment
An Equipment cleaning system radioactive materials in the nuclear power plant during operation.
-
Hydrogen Igniters(HI)
The Hydrogen Igniter(HI) is equipment forcibly igniting and removing hydrogen that can be generated in an accident environment of nuclear power plant, which is used in a serious accident environment of nuclear power plant.
-
Passive Autocatalytic Recombiners Passive Autocatalytic Recombiners(PAR)
The passive autocatalytic recombiner(PAR) is equipment that removes hydrogen able to be generated in the accident environment of nuclear power plant through atmospheric oxygen and catalytic action and is operated without separate power supply.
-
Polymer Solidification System
Polymer drumming device designed for the solidification of solid wastes generated during operation of the nuclear power plant. It can be classified as fixed type and portable type, It is automatically operated via a PC in the waste control room.
-
MDI(Membrane Deionization) MDI400H2, MDI500H1, MDI500H2, MDI500V
MDI is Huvis Water’s electro-deionization product that consists mainly of ion exchange resins, ion-exchange membrane and electrodes to produce high purity water.
Unlike the conventional ion exchangers, no use of regeneration chemicals, resulting in no regeneration wastewater, and no
interruption during the service process
-
UF (Ultrafiltration Membranes) HS-50, HS-60, HMS 1023
Recent advencements in the membrane filtration technology have expanded the application of the UF/MF membrane modules to water treatment system. Huvis Water has developed specific technologies, know-how and insights into the pre-treatment for using UF membranes.
Specially formulated hydrophilic polyethersulfone(PES) material, uniquely designed asymmetric profile with sponge-like structure and an optimized process ensure high permeate flux and quality. Low fouling property of the membrane can also reduce operating cost and plant downtime. The system offers low capital and installation cost with a large membrane area per unit volume within a compact footprint. After a long, dedicated research, Huvis Water now produces high-quality membranes and supplies modules of various capacities to meet the customers’ needs. Huvis Water membrane is used to treat ground water, surface water, waste water, and seawaters as either primary treatment or as pretreatment to RO membranes.
-
Waste water treatment facilities/Waste water reutilization facilities
Waste water facilities / waste water reutilization facilities – The various facilities treating waste water that are generated in the domestic and overseas thermal power/nuclear power plant, petrochemical and industrial plant on the basis of technology accumulated over decades of years are supplied and technology and competitiveness through technical tie-up with the global companies are being secured. Also, we posses reutilization technology able to cope with the climate change such as water shortage etc., reusing the treated water as water for use and supply not only domestically, but also extends to various parts of the world.
-
Waste water treatment facilities/Waste water reutilization facilities
Pure water treatment facilities – industrial water & pure water treatment facilities facilities required by power plants and industrial sectors and the various types using economic and easy-to-apply separation membrane membranes based on advanced technology development as well as the existing ion exchange system are supplied.
Seawater fresh water treatment facilities- Seawater fresh water treatment facilities using separation membrane of economic and stable Seawater fresh water treatment facilities reverse osmosis technology through technical partnerships with global leaders in the seawater fresh water plant field and development of joint project our country pushes ahead with to solve the water shortage problem of the world such as Middle East, Africa, Asia, Australia etc. are supplied both at home and abroad.
-
Intake facilities
Intake facilities : These systems draw in and screen seawater and fresh water, it is composed of COARSE & FINE screening facilities, having its THROUGH/DUAL/CENTER FLOW & DRUM SCREEN etc.
Sluice facilities : These facilities manage water flow by intake, discharge, and blockage to use water resources in waterways for power generation, dams, reservoirs, and other applications. Sluice facilities are composed of ROLLER GATE, RADIAL GATE, winder etc.
-
BY-PASS VALVE SYSTEM
Valve system playing a role at the initial preliminary step of steam turbine operation including circulating steam, heating, passing through to bypass valve and circulating, reheating as a preliminary step before operating main turbine normally in the thermal power plants.
It is composed of HPU, controller, steam valve and actuator etc. and is usually supplied to Package system.
-
STAINLESS STEEL BUTT WELDING FITTING
- 90︒(Long, Short) and 45︒ Elbow(Short)
- Reducer (Concentric, Eccentric)
- Tee (Straight, Reducing)
- Cap
- Lap Joint Stub End
-
CARBON & ALLOY STEEL BUTT WELDING FITTING
- 90︒, 180︒(Long, Short) and 45︒ Elbow(Short)
- Reducer (Concentric, Eccentric)
- Tee (Straight, Reducing)
- Cap
-
TUBE FITTINGS
- Suitable for instrumentation, high temperature and high pressure and ultra-low-temperature environments
- Compression dual-ferrule design
- Full compatibility
- Vibration resistance
-
DISSIMILAR ADAPTER
Connectors joined by welding A105 material and A182 F316L material for dissimilar joints
-
FITTING, VALVE
It is pipe fitting, adaptor for connection, and instrumentation valve and industrial valve are being manufactured and supplied based on the technical skill of adaptor for measurement.
-
Auxiliary device
Devices such as coolers and reservoirs designed to create an environment that ensures optimal performance through cooling, lubrication of M/SEAL.
-
BXRH
Product perfectly meeting a requirement of SINGLE, BALANCED, WELDED STATIONARY ALLOY 718 BELLOWS SEAL. API 682 TYPE C suitable for petrochemistry equipment of high temperature. Product that can improve corrosion resistivity & endure high speed.
-
QBQ
Product meeting a requirement of Single Balanced Multi-Spring Pusher Seal. API 682 TYPE A being universally used for oil refinery & chemistry industry, power plant
-

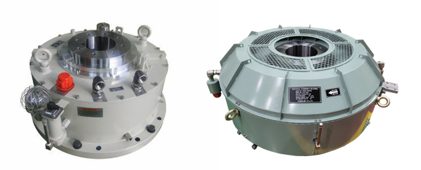

RCP for MECHANICAL SEAL
RCP of standard nuclear power plant is a device circulating coolant of high temperature, high pressure between reactor and steam generator, RCP Seal plays a role of preventing coolant equipped with coolant pump.
-
100% Microglassfiber Air Filter Media
This product is a filter media product made with glassfiber material which develops the low differential pressure, medium/high performance efficiencies, water repellency and strength, which is applicable to wide areas of entire industry fields. The product is primarily used for main filter media for high-efficiency ULPA/HEPA Air Filter and MEDIUM Air Filter, providing absolutely required functions for extending the life cycle of filter and maintaining the performance. As well, the product demonstrates the high filtering rate with low pressure loss, which is suitable for saving operation cost with high performance.
-
PP Pleated Cartridge Filter
Polypropylene(PP) Cartridge Filter is manufactured to provide the maximum filtration area by the unique characteristics of pleated cartridge filter, offering excellent performance in terms of flow rate and pressure loss and structural reliability with connection using heat.
PP Cartridge Filter made of stable polypropylene material is primarily used for pre-treatment filter to extend the filtering life cycle of final filter in the water treatment systems of diverse industrial sectors, which in some application processes is used as the final filter.
-
PRE FILTER [Low Efficiency Filter]
It is a part for collecting dust particles of clean air system.
It has from clean air system an 85% removal efficiency by ASHRAE STD 52.1 gravimetric method. ASHRAE STD 52.2 (MERV 8)
-
MEDIUM FILTER [Medium Efficiency Filter]
It is a part collecting dust particles from the clean air system.
It has 65%, 85% and 95% of the removal efficiency by ASHRAE STD 52.1 dust spot method. (ASHRAE STD 52.2 MERV13, MERV14)
-
HEPA FILTER [High Efficiency Filter]
It is a part collecting dust particles from the clean air system.
It has 99.97% of removal efficiency to 0.3um particles.
-
AIRMAX Clean Mat
Just like a vacuum cleaner, AIRMAX Clean Mat sucks and blocks harmful substances, including fine dust, sand, bacteria, etc. which flow in through shoes for a pleasant indoor environment. When people step on or approach to the mat, it detects that and activate the motor to suck the foreign matters into the internal mat as the area of the activated. In addition, it maximizes the rate of removal of foreign matters into the mat through the external air inflow valve by our patented inducing technology.
-
Linemarking Edge Applicator
It is equipment that can be applied woth the safety line and taped at the same time,
so it can be done in parallel cleanly and conveniently.
◆ Product Features
* Material from BODY is Mde of SC steel for durability.
* Using a wide-range urethane material on the drive wheel to achieve line straightness.
* Spray line width 5 to 15 cm can be applied.
* 2coats double sprayer allows one applicalication to be transparent.
* Fluorescent and glow-in-the-dark spray can be applied twoxe(lower whitem upper fluorescent)
* Available only for LINE TAPE at logistice centers and factories.
-
Industrial Bearing By producing metal bearings protecting core parts of petrochemical, industrial plants and general industrial devices, the company is continuously identifying the needs of customers and investments in products for continued business.
-
Bearing for nuclear power plants
Since registering itself as an approved partner of Korea Hydro & Nuclear Power in 1998 where strict quality compliance is essential, it has continuously produced and delivered Babbit bearings that support main shaft through continuous quality improvement. By going beyond the domestic markets, by delivering to major power companies worldwide, it is continuously expanding the business scope.
-
Tilting Pad Bearing
-Tilting Pad Bearing: Thermoelectric, nuclear, combined cycle power plants
-Applied to: Turbines
-
JOURNAL BEARING
-Journal Bearing: Thermoelectric, nuclear, combined cycle power plants
-Applied to: Power generators
-
DIESEL ENGINE GENERATOR
• Automatic engine starting and stopping.
• Graphical icon type LCD display.
• PC configurable via MS-Windows based software.
• Simple selector switching type control operation.
-
Tilting pad thrust bearing
Turbolink has designed and manufactured customized tilting pad thrust bearings for many rotating machinery based on broad experience. Self-equalizing thrust bearings have excellent force-balancing function which allows each shoe to carry an equal amount of the total thrust load.
-
Vertical guide & thrust bearing
Turbolink vertical bearings are a standard range of vertical bearings, which are robust, lightweight (dependant on size) and self lubricating. These bearings can be fitted with a variety of resistance temperature devices to measure the temperature of the lubricating oil or pads. Turbolink vertical combined bearings are usually self contained with water coolers which can be modified for different methods (i.e. air cooled and circulated oil variations) only by minor modification of casing.
-
Thrust Pad Bearing
Pad Bearing used in power facilities
-
Turbine Bearing
Turbine bearing used in power facilities
-
Flexible Hose
Flexible metal hose is specified for several different applications: whenever there is excessive vibration; whenever misaligned pipe or tube is encountered; whenever flexibility is needed for manual handling
situations. To select the proper hose for any of these applications requires, careful consideration of the inherent flexibility of the material in regards to the design of the assembly, installation, and versatility expected of the hose.
-
Expansion Joint
An expansion joint is a device containing one or more bellows used to absorb
dimensional changes, such as those caused by thermal expansion or contraction
of a pipeline, duct or vessel while containing pressure and the medium running
through it.
Frequently, thermal growth, equipment movement, vibration or pressure
pulsation can cause movement in a piping system. When flexibility for this
movement cannot be designed into the piping system itself, an expansion joint
is the ideal solution.
-
PRESSURIZATION TYPE ‘PZ’ PANEL
The system shall be used in Zone 2 Hazardous
Area and keeping the internal pressure higher
than 10mmH2O than the external pressure to
block the inflow of out side air and explosive gas.
-
Universal Type Expansion Joint
This model, with a tie rod assembly, is an improvement on the un-tied universal type. The tie rod absorbs the thrust, which may damage the device.
-
Single Type Expansion Joint
This model, with the tie-rod assembly, is an improvement on the Single Typle Expansion Joint. This model is designed for pipelines with lateral movements. Tie-rods are designed to sustain the thrust generated during operation.
-
Deaerator
The equipment extends life expectancies of equipment by removing corrosive gases like dissolved oxygen and carbon dioxide in the water supply of a power plant or industrial plant. It is designed and produced in vertical, horizontal, and single-body forms, depending on the capacity of water supply.
-
Surface Condenser
A surface condenser is essential for condensation of the turbine exhaust steam and has important function to electic output efficiency of power plant.
-
Metal expansion joint
Angular expansion joints are suitable for installations where it is not possible to create sturdy fixing points, and in pipe systems where bending occurs.
Since the angular expansion joints can only absorb bending, at least, 2 or 3 angular expansion joints are required everytime to ensure correct absorption of the movements.
-
Metal expansion joint
The pressure balanced expansion joint is used to relieve loads on equipment such as pumps, compressors and turbines.
The pressure balanced expansion joint will be negligible when compared to the cost of additional equipment, piping and building space which would be necessary for safe functioning of the equipment without the expansion joint.
-
Bolt Tensioner
It is difficult to precisely engage using traditional method of tightening and loosening bolts using a wrench due to the surface friction between the bottom of nut and flange surface and the distortion stress and friction from the thread. Bolt tensioner ensures precise and diverse tensioning of bolts and studs. This is quick, safe and easy to use.
-
Turbine Blade
As the core parts in steam turbines and gas turbines in nuclear power, hydro power, thermoelectric power and combined power plants, it gives high speed rotating power source when steam or gas generated from boiler or other facilities passes through the blade inside the turbine at high temperature and high pressure to rotate the power plant and generate electricity.
-
Welding rod (Welding Materials)
Stainless Steel : ER308/L, ER309/ER 316. Etc.
Special Alloy Steel : ERNiFe-Cr-2, ERNiFeCr-2, ERNiCu,Etc.
-
turbine valve hydraulic actuator
This is a product developed to prevent performance deterioration in extended use by supplementing the problem of turbine valve hydraulic actuators that were 100% imported
The air discharging valve employed in the product has the advantages of preventing seal damage from adiabatic compression and increasing facility durability by automatically discharging the air flowing into the hydraulic system.
-
Oil Free Air Compressor
•Best Efficiency of Inverter.
•Completely free from the problem of oil.
•Oil Free Type with Maximum Flow Rate
•Lowest Management & Repair Cost
•Highest Efficiency and Energy Saving
•Sealing, Lubrication, and Chilling with Pure
Water (Completely Oil Free)
•SMART AIR COMPRESSOR
-
Reciprocating Gas Compressor
Clean compressed (gas or air) with non-lubricated type multi-stage reciprocating compressor.
Economical operation through the adjustment of variable capacity with Auto Unloading System.
Explosion proof type compressor for hazardous area
